Zoom AMS-44
Product information "Zoom AMS-44"
AMS-44 | 4 inputs and 4 outputs
Whether recording or streaming – the AMS-44 keeps your setup clear and organised. The interface offers four XLR/TRS combo inputs with powerful, low-noise Zoom preamps. There are also two headphone outputs and two TRS outputs for connecting external monitors.
Direct access
Thanks to their physical switches, the AMS-24 and AMS-44 provide a streaming solution that works without extra software.
Small switch, big streams
The Music/Streaming switch lets you easily change between recording and streaming modes. In Music mode each input can be used and levelled individually. Different mixes can also be routed to the headphone outputs.
In Streaming mode all inputs are combined into a single audio signal that integrates seamlessly with your streaming software.
Integrated monitoring

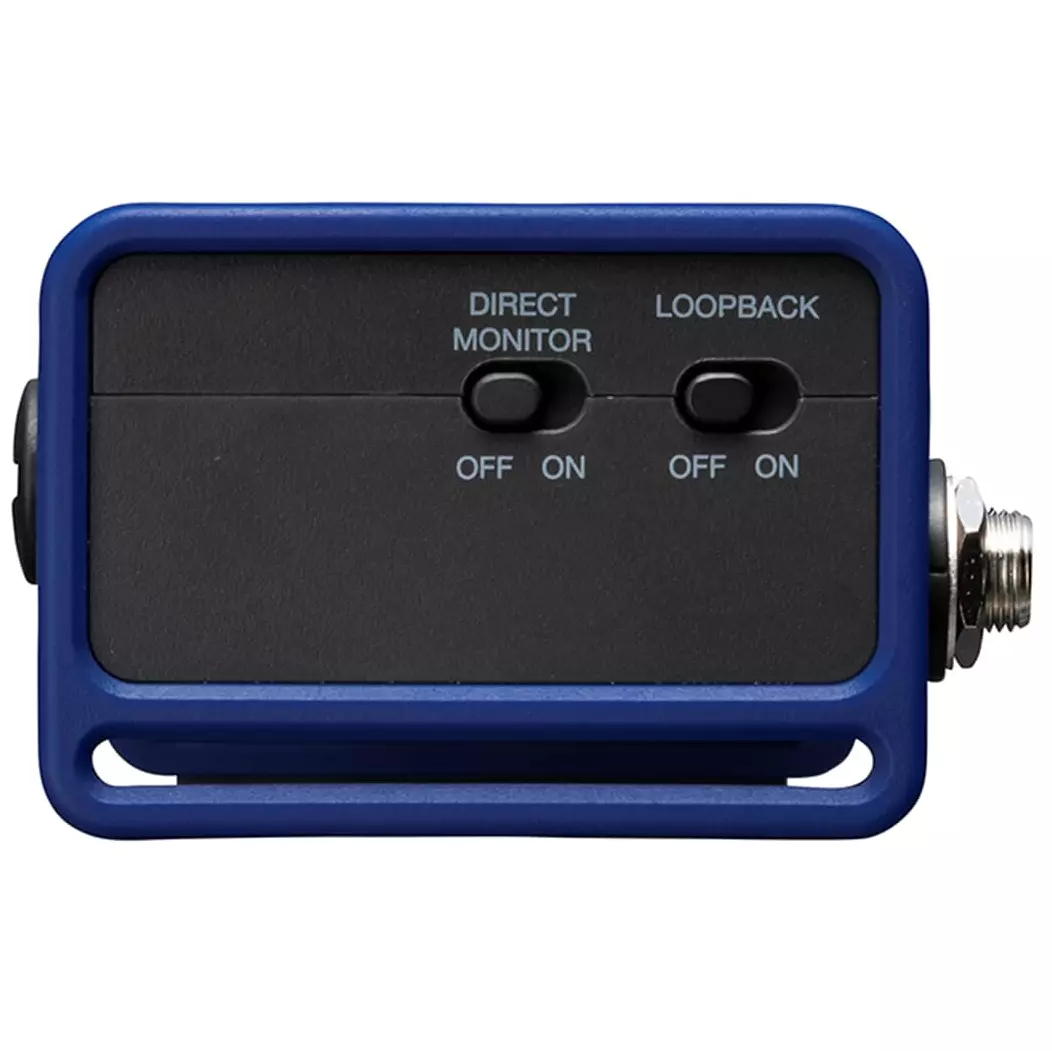

Press the Direct-Monitor button to send the input signal directly to your headphones while also feeding your DAW or streaming software.
Loopback option
The Loopback switch lets you combine the input signal with your computer's playback signal and feed it to your streaming software. This is a perfect way to add background music to your stream or to combine live vocals with an instrument track.

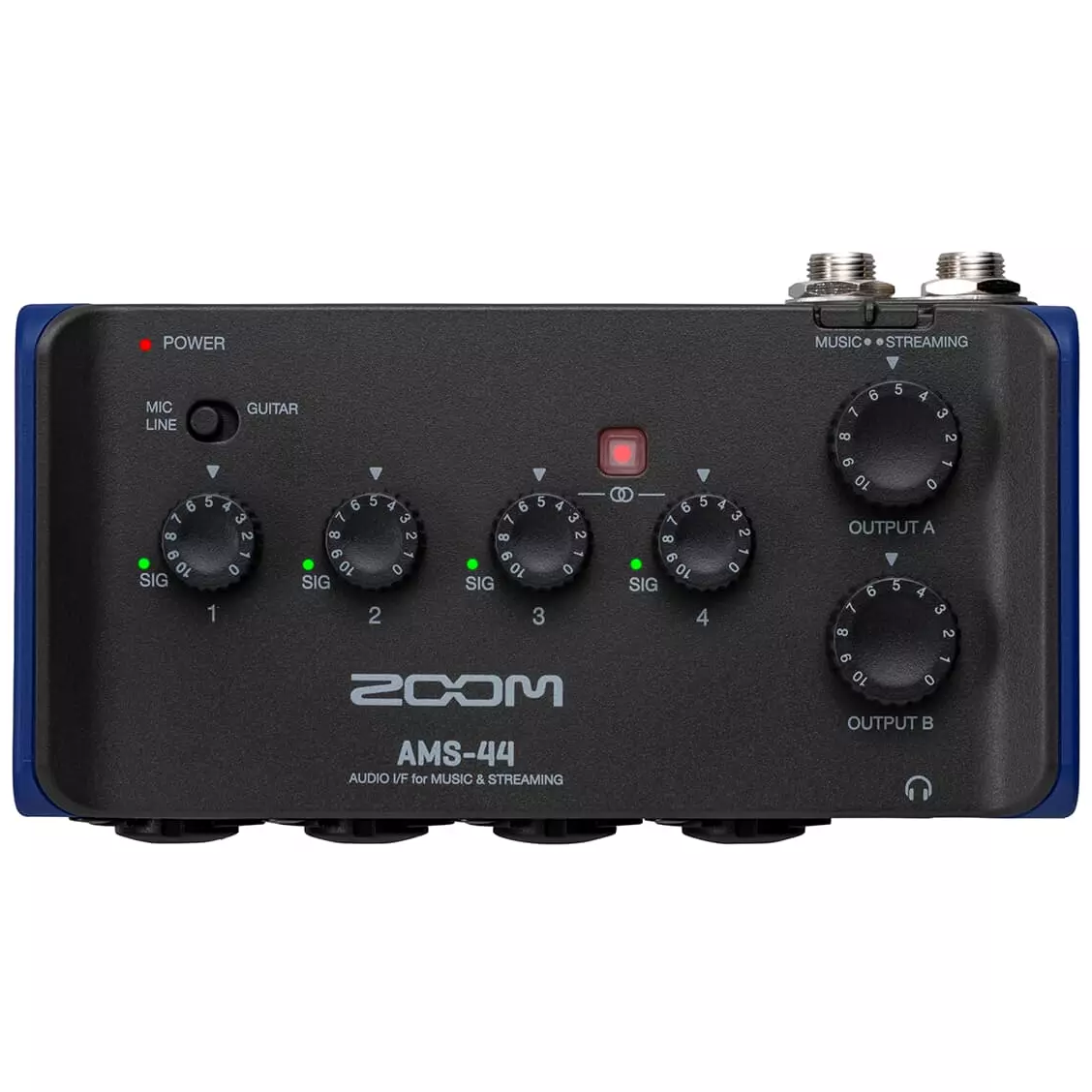

MIC / LINE GUITAR
Here you can choose for Input 1 between Mic/Line or Guitar mode (Hi-Z).
STEREO LINK
Link two input signals here to create a stereo signal that you can record or stream, while controlling both inputs with a single gain control.
PHANTOM POWER
Use this to enable +48V phantom power for condenser microphones.
POWER
All three AMS interfaces can be bus-powered via USB-C when connected to a PC or Mac. For use with tablets or smartphones an external power supply is required. The AMS-24 and AMS-44 can alternatively be powered by two AA batteries.
PLUG IN…
With support for Mac and PC as well as iOS and Android, the AMS series can be used with virtually any device.
…AND GET STARTED
The AMS series is designed for seamless integration with the most popular apps, software and operating systems.
In Streaming mode you can present yourself to your audience on popular platforms such as YouTube, Facebook, Twitch, Instagram and Patreon.
In Music mode you can record with apps like Adobe Audition, Pro Tools, Cubase or GarageBand.
Scope of delivery:
- AMS-44 USB audio interface
- USB-C cable
- Quick start guide
- AVB: no
- Dante: no
- Dimensions: 129 x 74 x 46 mm
- Direct Monitoring: yes (Interface)
- Headphone Output: 3,5 mm Stereo Jack
- Hi-Z Input: 6,3 mm Jack (Ch 1)
- Input channels that can be used simultaneously: 4
- Line in: 4x XLR/ Jack -Combo (Ch 1-4)
- Line out: 2x 6,3 mm Jack (unbalanced)
- MADI: no
- Mic-In: 4x XLR/ Jack -Combo (Ch 1-4)
- Resolution: 24-Bits
- Sampling Rate: 96 kHz
- Subcategory: USB Audio Interface
- USB: yes
- Weight: 177 g
