ART SPLITCom Pro
Available, delivery time: 1-3 days
session Walldorf:
available in local store
session Frankfurt:
available in local store
Product information "ART SPLITCom Pro"
The ART SPLITCom Pro is a splitter for low-impedance microphones. In addition to splitting one signal to two separate outputs, the SPLITCom Pro allows combining two microphone signals onto one channel. ART SPLITCom Pro:
- Design: Table top unit
- Dimensions (WxHxD): 47 x 117 x 89 mm
- Enclosure: Metal
- Frequency Response: 20 Hz - 150 kHz +/- 0.2 @ 0dBu
- Ground Lift: yes
- Number of inputs: 2
- Outputs: 1
- Subcategory: Splitter/Combiner

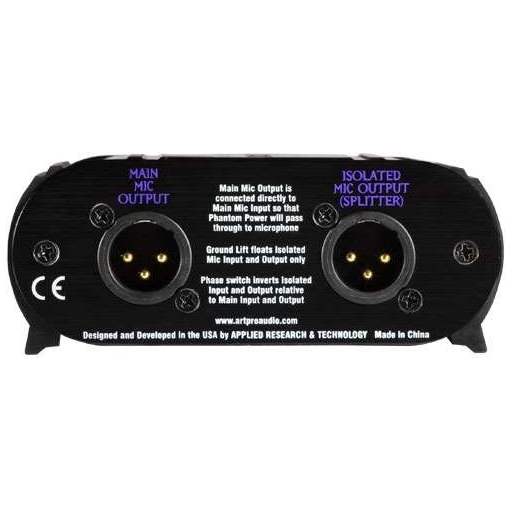

- Provides either a direct signal and a galvanically isolated signal from a simple microphone signal OR an output signal from two microphone input signals
- Low-distortion transmission over a wide frequency range. Phase switch for subtractive combining (input signals cancel each other out)
- galvanic isolation by transformer prevents phantom power on the isolated channel
- Phantom power is routed to the main output
- Combiner / splitter for microphones
